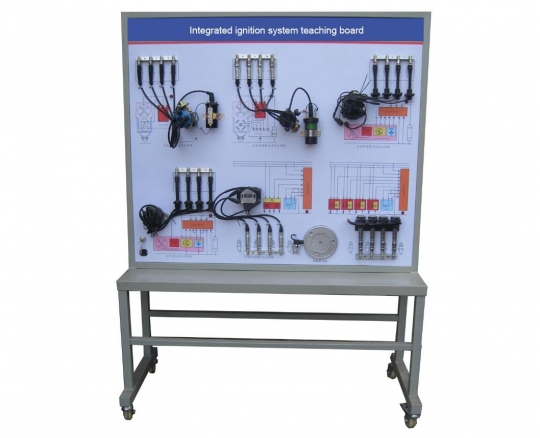

Vocational Integrated Ignition System Teaching Board

Vocational Integrated Ignition System Teaching Board

Product description

The device is based on the multiple ignition system. The composition and the working process of various ignition system can be demonstrated.

Structure and composition

The ignition system training device contains total six systems be below:

- Platinum contact ignition system,

- Holzer electronic ignition system,

- Magnetic induction ignition system,

- Photoelectric induction ignition system

- Group type ignition system without distributor

- Independent type ignition system without distributor

And include large capacity battery or 12V switch power, detection terminal, fault settings and troubleshooting system, mobile bench.

Features

1. The color circuit diagrams are printed on the panel which is easy for the students to analyses and to understand the ignition system.

2. 1-6 types ignition system can be demonstrated.

3. It has the specialized troubleshooting and set areas.

Production technology

1. Nylon casters with locking casters are assembled under the frame. it can be moved freely, and facilitate the teaching

2. Power supply: DC12V, battery

3. Dimensions: about 1260x850x1860mm
