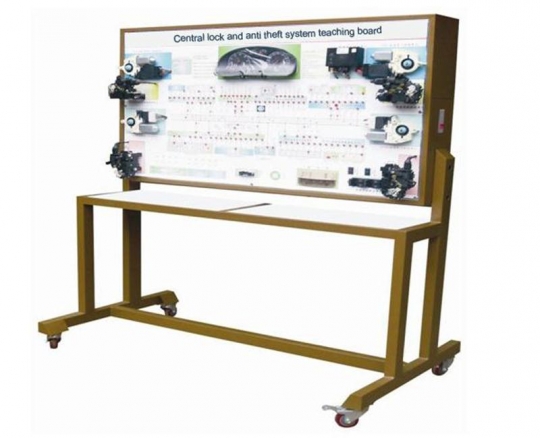

Vocational Central Lock and Anti Theft System Teaching Board

Vocational Central Lock and Anti Theft System Teaching Board

Product description

The teaching board contains car alarm and central locking system. It can fully display the composition and work process of the car alarm and central locking system..

Structure and composition

Original car central locking ECU, glass lifting computer, glass lifter, four-door locks machine, tail cover lock, door lock switch, relay, data cable, high-capacity battery or 12V switch power, failure settings and troubleshooting system, color circuit schematics panel handling by computer, control panel, mobile stand.

Features

1. It is based on the real anti-theft device and central locking. The working principle and process of the anti-theft device and the central locking system can be demonstrated.

2. The electrical signals can be measured, such as resistance, voltage, current, frequency, etc of the electrical components.

3. The panel is an aluminum panel. The color schematics is very convenient for students to analyses and to understand the work process.

4. It has the faults setting function: After setting the fault, the students can use apparatus to find the fault and do the fault troubleshooting exercises.

Production technology

1. Mobile stand with locking casters, you can move and lock the device easily.

2. Power supply: DC12V, battery

3. Dimensions: about 1260x850x1890mm
